Applications: Assembly Forces, Weighing, Tool Force, Offshore, Civic Works

　　Industries: General Industry

　　

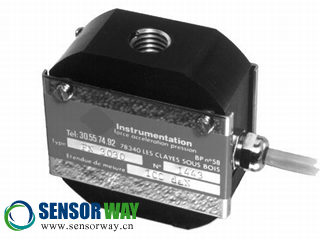

　　Description: The FN3002 is suitable for measuring cable tension and for use in test benches and in many industrial applications. The FN3002 has compact dimensions and measures tension and compression in standard ranges from 2000 to 400000 lb. Numerous options are available for adaptation to severe environments, for example, IP67 or IP68 protection. A model with integrated amplifier for high-level output is also available. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Full Scale Range: 0 - 10kN to 0 - 2000kN [2klbf to 400klbf]
　　Tension and Compression
　　Threaded Male Mechanical Fitting
　　Accuracy: 0.25% F.S.
　　Optional Rod End or Female Adapter
　　High Level Output Model with Integrated Amplifier

　　典型應用: 裝配力，稱重，工具受力，石油開采

　　行業: 工業控制

　　產品描述:
　　
　　FN3002用于測試臺和許多工業應用中的纜索拉力測量。FN3002尺寸小，用于測量拉力和壓力，量程從2000到400000 lb。多種配置可選，以適應惡劣環境的需要，例如，IP67或IP68，同時可選放大輸出。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。

　　特點:

　　量程從0 - 10kN 到 0 - 2000kN [2klbf 到 400klbf]
　　拉壓力測量
　　外螺紋
　　精度：0.25% F.S.
　　末端連桿可選
　　可選放大輸出

　　FN3002力傳感器更多技術參數及規格書下載請瀏覽：http://www.fidelicard.com/sensors/566.html
