Applications: Pumps and Compressors, Hydraulic/Pneumatic Systems,Automotive Test Systems, Energy and Water Management, PressureInstrumentation, Refrigeration - Freon and Ammonia Based, Agriculture- Sprayers and Dusters

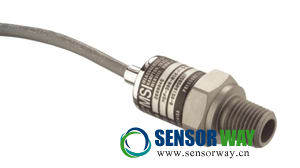

　　Description: The MSP 300 series pressure transducers from theMicrofused™ line of Measurement Specialties set a new price performance standard for low cost, high volume, commercial and industrial applications. This series is suitable for measurement of

liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-

proof, all metal sealed system. There are no o-rings, welds or organics exposed to the pressure media. The durability is excellent. Measurement Specialties proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a

stainless steel diaphragm. This approach achieves media compatibility simply and while elegantly providing an exceptionally stable sensor without the pn junctions of conventional micromachined sensors. This product is geared to the OEM customer using medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.
　　
　　Features:
　　Low Cost OEM
　　100% Leak Proof
　　No O-Rings
　　No Silicon Oil
　　No Welds
　　One-Piece Stainless Steel Construction
　　Ranges up to 10,000 PSI or 700 BAR
　　Millivolt or Amplified Outputs
　　Excellent Accuracy
　　Wide Operating Temperature Range

　　典型應用: 泵和壓縮機，液壓/氣動系統，汽車測試系統，能源和水處理系統，

　　壓力儀表，制冷系統，農機，噴涂機

　　產品描述: MSP300系列壓力傳感器為低成本，大批量的商業和工業應用樹立了新的性能價格比典范。傳感器適合氣體和液體壓力測量，甚至包括污水、蒸汽、輕度腐蝕性液體和氣體等。MSP300的壓力腔由17-4PH不銹鋼單件一體式結構加工而成，標準產品帶有1/4 NPT壓力接口，全金屬密封，無泄漏。由于無O型圈、無焊縫、并且不直接接觸測量介質，傳感器的穩定性和耐用性非常好。

　　MEAS獨有的微熔技術源自航空應用，利用高溫玻璃將微加工硅壓敏電阻應變片熔化在不銹鋼隔離膜片上。玻璃粘接工藝避免了溫度、濕度、機械疲勞和介質對膠水和材料的影響，從而提高了傳感器在工業環境中的長期穩定性，同時也避免了傳感器在傳統微機械加工制造工藝過程中出現的P-N結效應現象。產品特別適用于OEM客戶中等及大批量應用，標準產品可廣泛應用于各種用途。同時，為了保證批量應用的要求，我們的工程設計隊伍還隨時準備為客戶量身定制特殊需求的產品。

　　特點:
　　低成本OEM應用
　　100%無泄漏
　　不銹鋼單件一體化結構
　　無O形圈
　　無硅油
　　無焊縫
　　壓力范圍高達10K Psi或700Bar
　　毫伏或放大輸出
　　高精度
　　工作溫度范圍寬

　　MSP300系列壓力傳感器更多技術參數及規格書下載請瀏覽：http://www.fidelicard.com/sensors/73.html
　　
　　北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
